Digga Mini Power Rake Multifit 48" 1219MM MANUAL ANGLE - MINI MULTIFIT ASV RC30 SSL

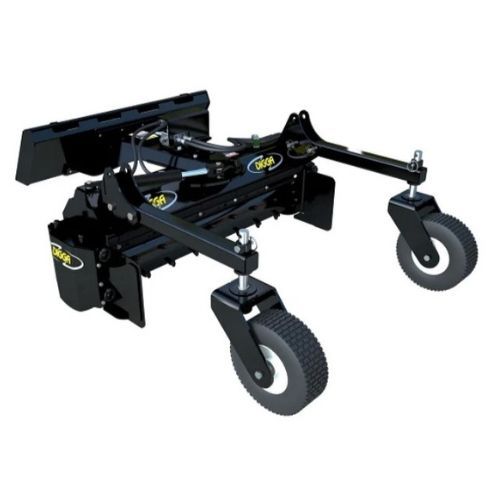

Digga Mini Power Rake
Machine Suitability: Small Skid Steer Loaders & Mini Loaders
Perfect for Leveling, Grading, Seedbed Preparation, Sloping, Site Preparation, Lawncare, Golf Courses, Wineries, Paving and Contractors. Utilises a Digga planetary gearbox that delivers superior power and mechanical efficiency, giving you BETTER PERORMANCE.
Price Inclusions:
Power Rake, Hoses and Couplers
NB: This product is made to order. Please enquire about current build and delivery times for this product.
Options:
1219MM (48”) MANUAL ANGLE - MINI MULTIFIT (KANGA / DINGO / BOXER)
1219MM (48") MANUAL ANGLE - ASV RC30 SSL
1219MM (48") HYDRAULIC ANGLE - MINI MULTIFIT (KANGA / DINGO / BOXER)
1219MM (48") HYDRAULIC ANGLE - ASV RC30 SSL (INCLUDES ELECTRICAL KIT)
ELECTRIC OVER HYDRAULIC KIT TO SUIT ASV 8 PIN PLUG
Features:
- Hydraulic driven planetary gearbox, directly mounted to the drum
- Hydraulic angling to 25 degrees in either direction
- Optional Manual Slew available
- Made Australian Quality
- Removable spoil plates for windrowing.
- Bi-directional drum can work soil in both directions
- Removable wheels for easy transport and storage
| Mini Loader Specs | |
| Rec Flow Range (LPM) | 35-75 LPM |
| Drum Width | 1220mm |
| Overall Width | 1467mm |
| Length (Wheels Down) | 1645mm |
| Length (No Wheels) | 862mm |
| Drive System | Planetary Gearbox |
| Motor | 2K Bell Eaton |
| Max Pressure (BAR) | Do not exceed 240 bar @ 60 lpm |
| Max Flow (LPM) | Do not exceed 115 lpm @ 130 bar |
| Max Power | Do not exceed 115 lpm @ 130 bar |
| Weight (kgs approx.) | 330 |
Due to the dimensions of this item, all deliveries will be shipped to the closest freight depot, or Commercial business with forklift facilities. Please note, that any location with a house is considered a residential property, including farms and businesses
