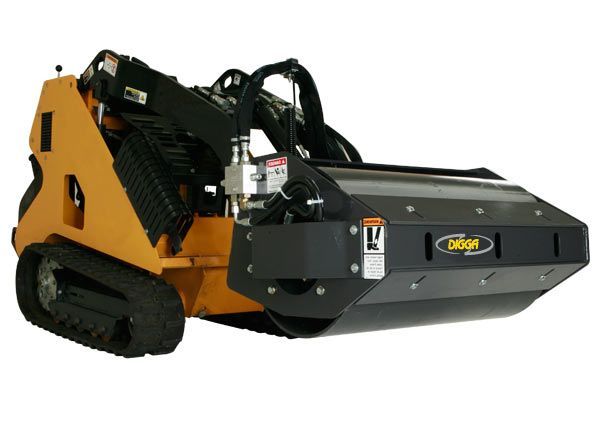

DIGGA MINI VIBRATORY ROLLER 914MM (36”) SMOOTH DRUM VIBRATORY ROLLER - MINI MULTIFIT - POA
The Digga Mini Vibratory Roller is available with a smooth drum providing our customers with a productive and cost effective compaction equipment. Its versatility makes the roller highly effective on a wide range of materials including sand, gravel, soils and asphalt.
Suit Machine Types:
Mini Machines and small skid steer loaders.
Price Inclusions:
Mini Roller, Hoses and Couplers
POA: PLEASE CONTACT US FOR A QUOTE AND LEAD TIME
Features:
- Protected and Isolate Hydraulic drives to provide maximum performance
- Adjustable steel scraper blade between the frame and drum ensure smooth uniform compaction
- Delivers up to 1130 kgs of dynamic force
Ideal Use: rental fleets, contractors, landscaping, roadways, walkways, bike paths, golf courses, bridges and parking lots.
| Specifications | ML-000109 |
|---|---|
| A Width (Overall) |
1053mm |
| B Drum Width | 914mm |
| C. Height (Overall) | 546mm |
| D. Length (Overall) | 874mm |
| E. Drum Diameter | 508mm |
| Operating Weight (kgs) | 381 |
| Dynamic Force (kgs) | 1130 |
| Vibrating Speed (vpm) | 2000 |
| Vibrating Weight (kgs) | 229 |
| Drum Oscillation/Tilt (degrees) | 15 |
| Hydraulic Motor Flow Options (LPM) | 38 - 53 |
Due to the dimensions of this item, all deliveries will be shipped to the closest freight depot, or Commercial business with forklift facilities. Please note, that any location with a house is considered a residential property, including farms and businesses.
